SeedMatchR ECDF Statistics

library(SeedMatchR)

Examples of ECDF statisics

There are a variety of approaches that can be used to calculate the difference between two distributions. Historically the KS Dstat has been used for miRNA related studies, but we have also explored other statistics such as the Wasserstein. The differences are outlined in the TwoSamples package.

Example workflow

# siRNA sequence of interest targeting a 23 bp region of the Ttr gene
guide.seq = "UUAUAGAGCAAGAACACUGUUUU"

Load example DESeq2 data

get_example_data("sirna")
#> Example data directory being created at: /home/runner/.local/share/R/SeedMatchR

sirna.data = load_example_data("sirna")

res <- sirna.data$Schlegel_2022_Ttr_D1_30mkg

res = filter_res(res)

Load Annotations

We will next load the annotations for rat. This step is further described in the vignette.

# Load the species specific annotation database object
annodb = load_annotations(reference.name = "rnor6", canonical = FALSE, min.feature.width = 8, longest.utr = T)

Search features for seed matches

res = SeedMatchR(res = res,
                 seqs = annodb$seqs,
                 sequence = guide.seq,
                 seed.name = "mer7m8")

head(res, 2)
#>              gene_id  baseMean log2FoldChange     lfcSE      stat        pvalue
#> 1 ENSRNOG00000016275 2138.0945      -8.164615        NA -23.61818 2.507268e-123
#> 2 ENSRNOG00000000127  437.6342      -1.346927 0.1068629 -12.60425  2.000712e-36
#>            padj symbol mer7m8
#> 1 3.405371e-119    Ttr      1
#> 2  1.358683e-32  Kpna6      0

Extract gene matches for each criteria and their fold changes

# Gene set 1
mer7m8.list = res$gene_id[res$mer7m8 >= 1]

# Gene set 2
background.list = res$gene_id[res$mer7m8 == 0]

# Gene set 1 FC
mer7m8.FC = res$log2FoldChange[res$mer7m8 >= 1]

# Gene set 2 FC
background.FC = res$log2FoldChange[res$mer7m8 == 0]

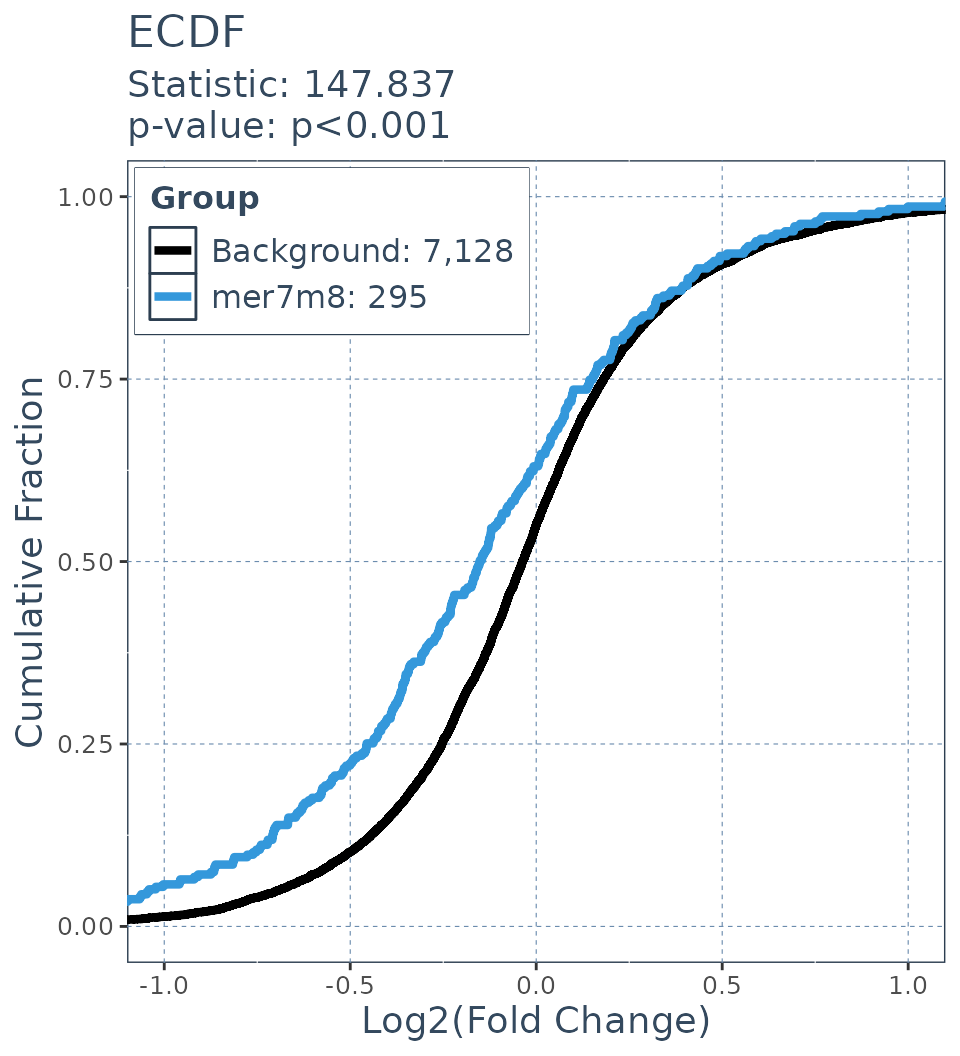

KS statistic

ecdf.results = deseq_fc_ecdf(res,
                             list("Background" = background.list,
                                  "mer7m8" = mer7m8.list),
                             stats_test = "KS")

ecdf.results$plot

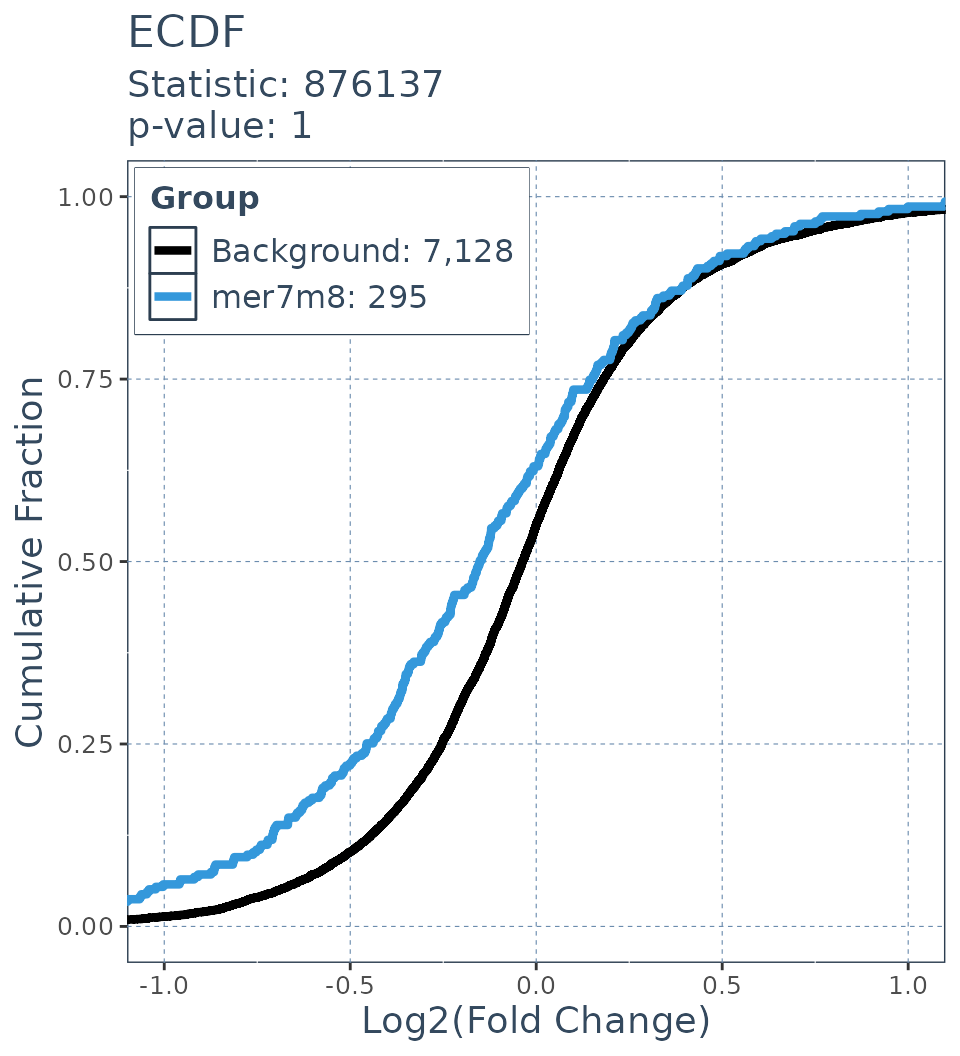

Wasserstein statistic

ecdf.results = deseq_fc_ecdf(res,
                             list("Background" = background.list,
                                  "mer7m8" = mer7m8.list),
                             stats_test = "Wass")

ecdf.results$plot

DTS

ecdf.results = deseq_fc_ecdf(res,
                             list("Background" = background.list,
                                  "mer7m8" = mer7m8.list),
                             stats_test = "DTS"
                             )
#> Warning in scored$statistic <- scored[[1]]: Coercing LHS to a list

ecdf.results$plot

Wilcoxen statistic

ecdf.results = deseq_fc_ecdf(res,
                             list("Background" = background.list,
                                  "mer7m8" = mer7m8.list),
                             stats_test = "Wilcoxen")

ecdf.results$plot
